APE ZX Manual Cam Chain Tensioners
APE ZX Manual Cam Chain Tensioners
Couldn't load pickup availability

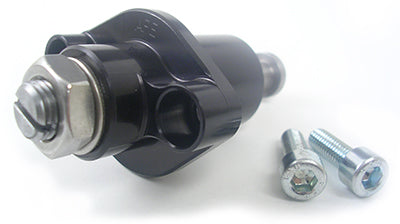

APE manual cam chain tensioners are designed to replace the automatic and hydraulic tensioners on high performance engines. The automatic adjusters can back out when the throttle is closed suddenly at high rpm. This allows the cams to go momentarely out of time, and can result in bent valves and/or serious engine damage. Hydraulic tensioners have a tendency to put too much tension on the chain guide under high rpm/high oil pressure conditions, resulting in premature wear. Both problems can be eliminated with the installation of the APE manual tensioner. No matter what the engine does, the cam chain tension will remain constant. An APE manual cam chain tensioner is a must for any kind of performance riding. APE manual tensioners are CNC machined from billet alloy to exact tolerances for perfect fit.
| EX650 (NINJA 650) 2009 - 2024 | KTZX6-PRO ($89.95) |
| ER650 (Z650) 2009 - 2024 | KTZX6-PRO ($89.95) |
| EN650 (VULCAN S) 2015, 2016, 2021 - 2024 | KTZX6-PRO ($89.95) |
| ZX6R 1995 - 1997, 2000 - 2024 | KTZX6-PRO ($89.95) |
| ZX6RR 2003 - 2006 | KTZX6-PRO ($89.95) |
| ZX9R 1998-2003 | KTZX6-PRO ($89.95) |
| Z900/900RS 2017 - 2024 | KTZX6-PRO ($89.95) |
| NINJA 1000 2011 - 2023 | KTZX6-PRO ($89.95) |
| Z1000 2010 - 2016 | KTZX6-PRO ($89.95) |
| ZX10 2006-2015, 2017-2018 | KTZX10-PRO ($89.95) |
| ZX10 2016 | KTZX10-16-PRO ($89.95) |
| ZX10 2019-2022 | KTZX14-12-PRO ($89.95) |
| NINJA H2 2017 - 2021 | KTZX14-12-PRO ($89.95) |
| ZX11 1993-2001 | KTZRX-PRO ($89.95) |
| ZX12 2000-2006 | KTZX6-PRO ($89.95) |
| ZX14 2012-2023 | KTZX14-12-PRO ($89.95) |
| ZRX1100/1200 (1999-2005) |
KTZRX-PRO ($89.95) |
| EX500 (all years) | KT1100 |
| 600R Ninja | KT1100 |
| EX650/ER650 (2006-2016) | KT750 |
| VN750, VULCAN 85-03 | KT1100 |
| CONCOURSE thru '07 - With NYLOCK nut. | KT1100-C |
| ZX6E 1993-2001 (ALL CENTERT CAM CHAIN MOTORS) | KT1050 use gasket #EC109 $4.37 |
| ZZR600 2002-2005 (ALL CENTER CAM CHAIN MOTORS) | KT1050 use gasket #EC109 $4.37 |
| ZX6R '95-'24 | KT750** |
| ZX6RR 636 '02-'06 | KT750** |
| Z1000 '03-'06 | KT750** |
| ZX7 (UP TO 1990) ALL CENTER CAM MOTORS | KT1100 |
| ZX7 1991-'03 | KT750** |
| ZX9 1994-'05 | KT750** |
| ZX10 (up to '03) , ZX11, ZRX11 | KT1050 use gasket #EC109 $4.37 |
| ZX10 2004-2005 | KTZX10 |
| ZZR1100 1990-1993 | KT1050 |
| ZX14 '06-'11 | KTZX14 |
| NINJA 900 (1986-2003), 900 ELIMINATOR (1985-1986), NINJA 1000 (1986-1987) | KT1100 |
| ZRX1100/1200 (1999-2005) | KT1050 use gasket #EC109 $4.37 |
| ZX12R (ALL) | KT750** |
**Note: Part# KT750 can not be installed in the motor when the motor is in the frame on some models.
