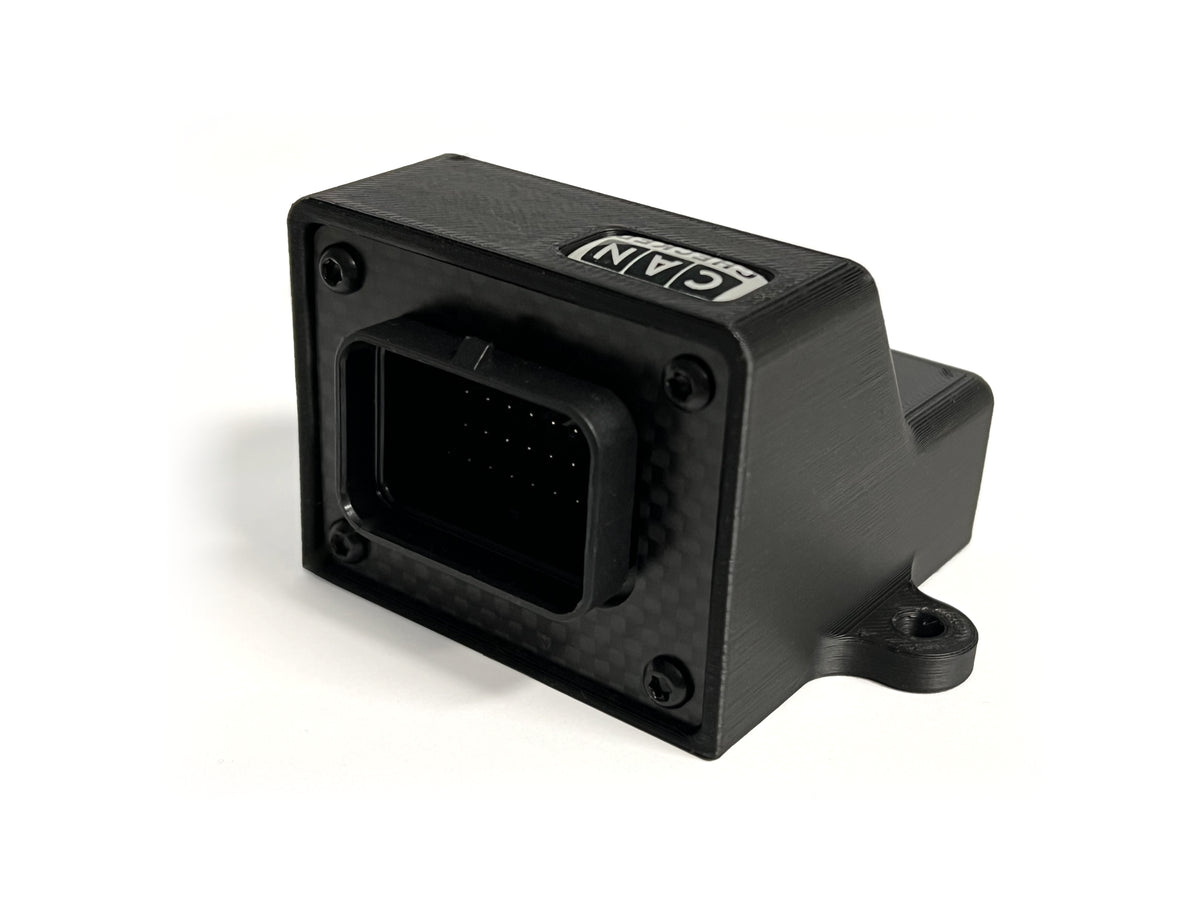

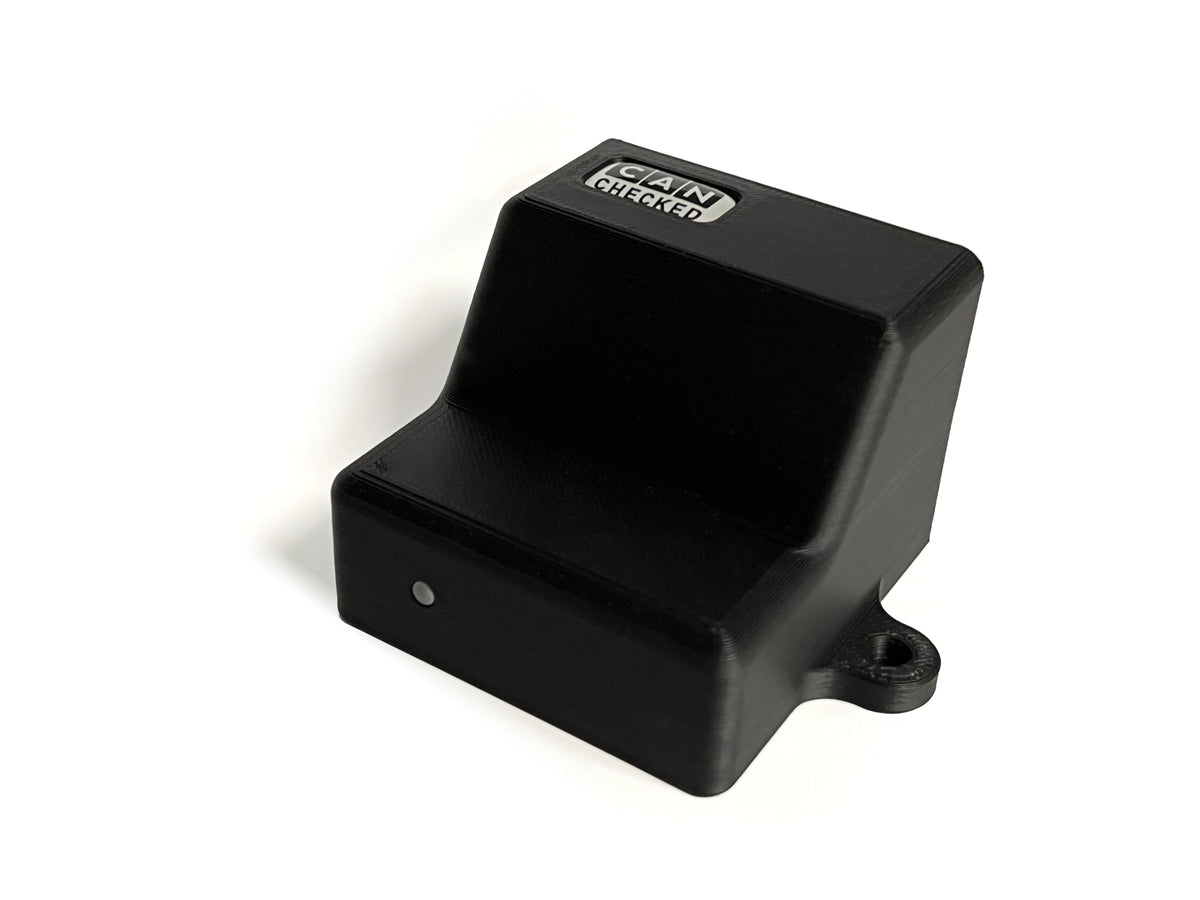

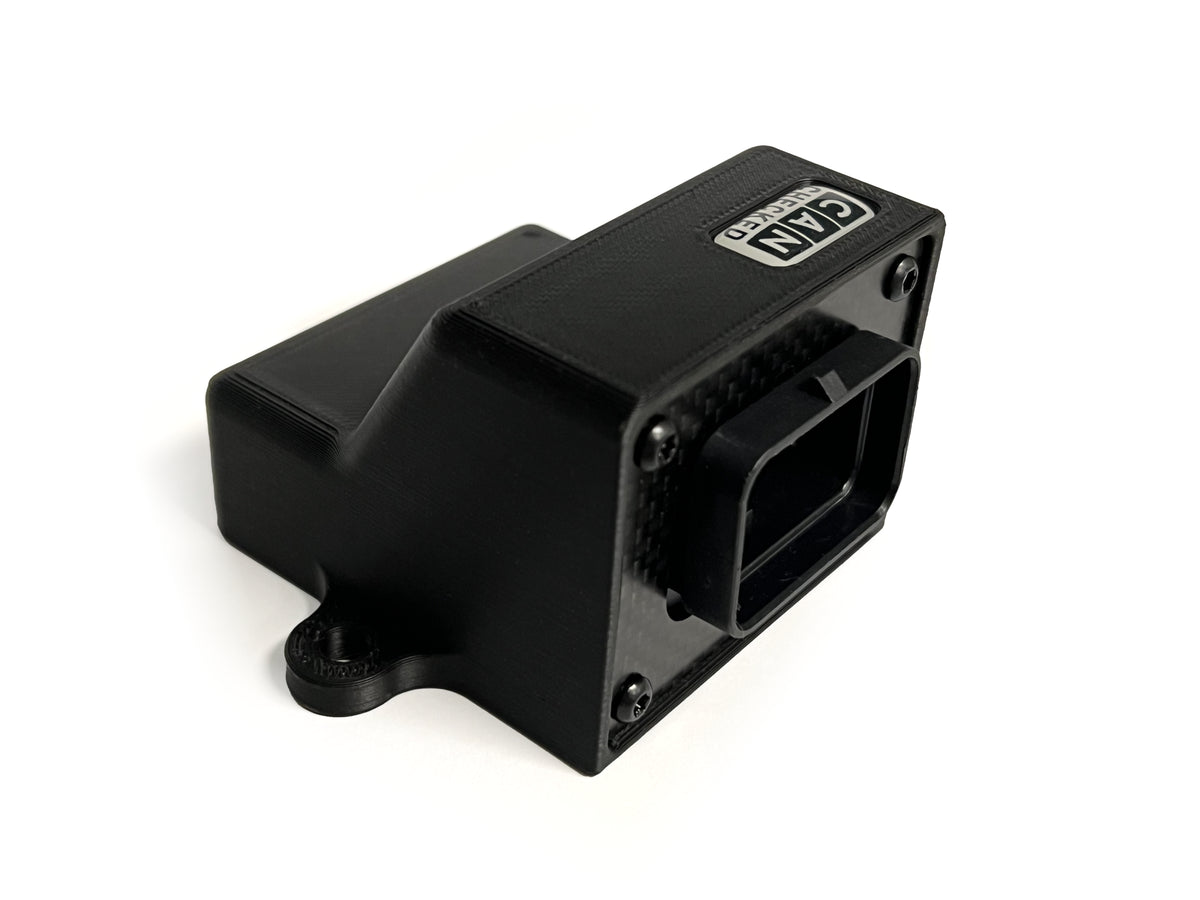

CanChecked MCE18v3

The MCE18 is the optimal solution if you only have a limited number of inputs.

It has already been tested with the following devices:
CANchecked MFD28/MFD32/MFD32S
MaxxECU (MaxxECU save file and instructions available)
Ecumaster (emulates Switchboard V3)
LinkECU (can streams available for import)
Haltech (emulates an IO16 extender A+B or just A or B)
Motec (emulates an E888 – up to 4 units are possible!)
AIM

The MCE18 features:
8 analog inputs (0-5V)
8 digital inputs (on/off); switching to 12V or ground
4 digital outputs (on/off LOW SIDE 0.5A)
4 frequency inputs (turbo speed or Hall sensor (wheel speed)); one input is reconfigured for this purpose)
1 frequency output (1-100 Hz)
One frequency input usable for ethanol (ethanol content and ethanol temperature)

Such a device is also available without a housing:  CFE18 – can switch board
