BB Racing

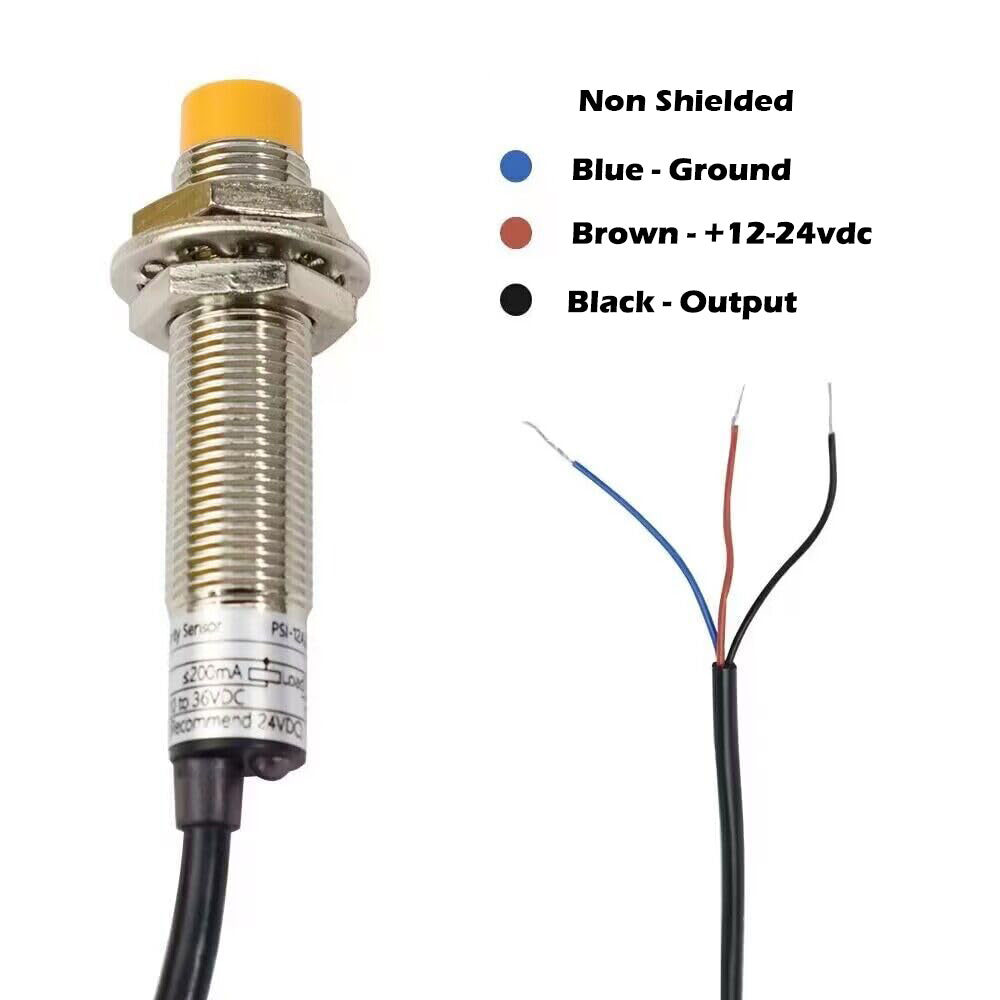

Driveshaft Speed Sensor
Driveshaft Speed Sensor
Regular price
$67.89
Regular price
Sale price
$67.89
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Sensor for Driveshaft Speed or Wheel Speed for Aftermarket ECU's
| Model | Proximity Sensor, Inductive |
| Installation type | Unshielded |
| Output methods | DC type, NPN NO, Unshielded |
| Detection range | 4mm±10% |
| Delay distance | ≤10% detection range |
| Detection object | Magnetic metal (the detection distance decreases when it is non-magnetic metal) |
| Standard detection object | Iron 15*15*1mm |
| Response frequency | DC: 1kHz, AC: 50Hz |
| Supply voltage | DC type: DC 12-24V |
| Consumption current | N/P type: ≤13mA, D type: ≤0.8mA, A type: ≤1.7mA |
| Control output | N/P type: ≤300mA, D type: ≤200mA, A type: ≤400mA |
| Loop protection | N/P/D type: reversal connection protection, surge absorption, load short-circuit protection, A type: surge absorption |
| Ambient temperature & humidity | Operation temperature/storage temperature: -30~65℃ Operation humidity/storage humidity: 35~95%RH |
| Temperature Data | Temperature range: -30~65℃, at +23℃, ±15% detection distance Temperature range: -25~60℃, at +23℃, ±10% detection distance |
