Suzuki GS1100 GS1150 Cams
Suzuki GS1100 GS1150 Cams
Couldn't load pickup availability

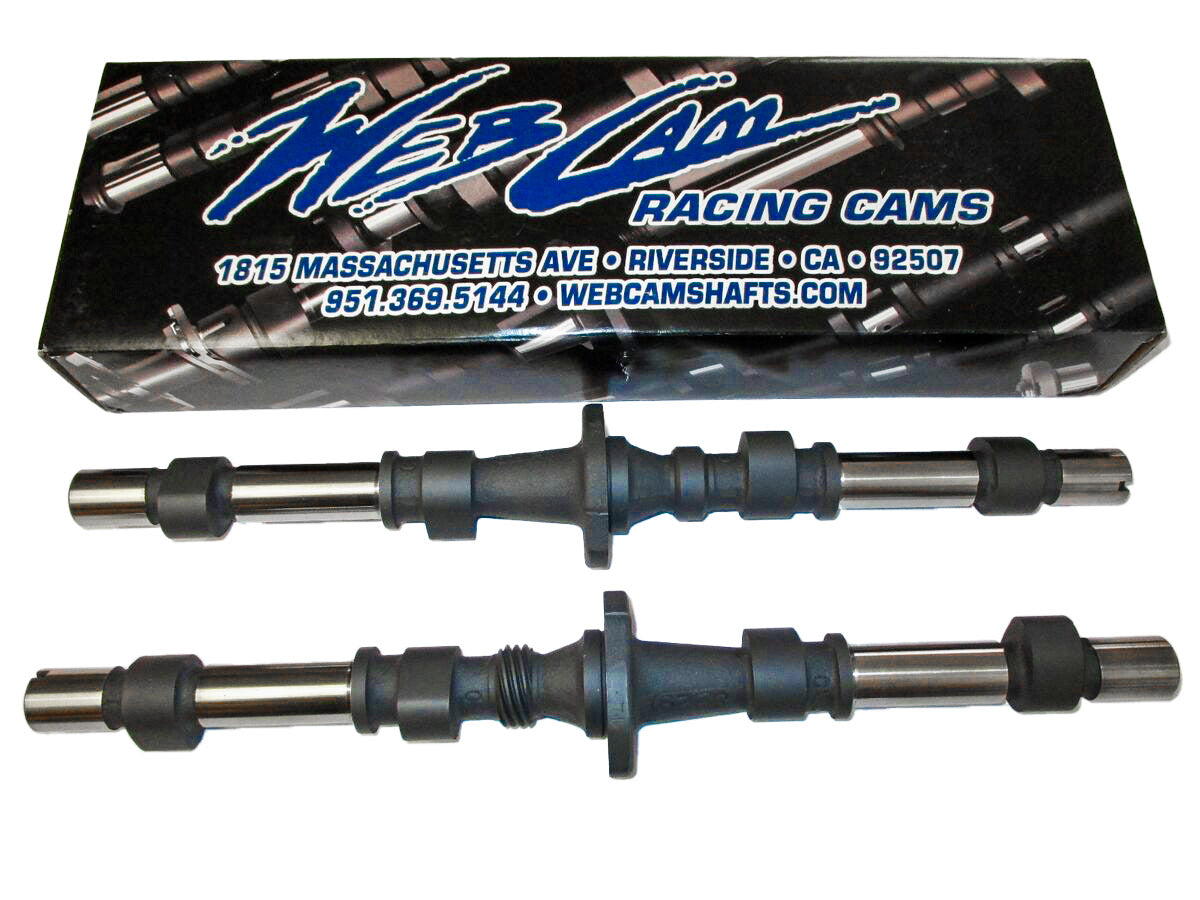

Web cams are recognized as the finest and fastest cams money can buy. Webs for the GS Suzuki are available as hardweld, customer cores required.
Some of the larger lift cams have a reduced base circle and require Extended Adjuster Screws. Other high lifts, and all that are subjected to severe race use will require Hard Weld Rockers
GS1000 2 Valve
|
CAM PART# |
LIFT |
DURATION @ .050 |
NOTES |
PRICE |
|
(W) 70-071 |
.422”/.422” |
260/260 |
Hot street & strip big bore motors. Strong mid range and top end. APE valve springs required. This is a hardweld cam. Customer core required. |
875.00 |
GS1100/1150 NEW BILLETS
|
CAM PART# |
LIFT |
DURATION @ .050 |
NOTES |
PRICE |
|
Special note...All Suzuki GS 4 valve models require the valve guides to sit lower in the head with cam lifts above .370”. APE guides sit low enough in the head to clear all cams listed. APE titanium retainers allow about .030” additional valve travel. |
||||
|
(W) 70-111 |
.348”/.348” |
257/257 |
Hot street & strip big bore motors. Strong mid range and top end. APE valve springs required. |
875.00 |
|
(W) 70-121 |
.370”/.370” |
242/242 |
Hot Street 1260 - 1327cc motors Small valve pro stock motors. Most popular for large displacement street motors. |
875.00 |
|
(W) 70-251 |
.389”/.389” |
256/256 |
Stronger mid range and top end. 13:1+ comp ratio |
875.00 |
|
(W) 70-311 |
.418”/384" |
256/256 |
Large displacement pro gas / pro street motors. Less aggressive than pro stock type grinds for longer cam and rocker life. VS1100S-PRO springs required |
875.00 |
|
(W) 70-231 |
.420”/.389" |
256/256 |
Pro stock, street racer with big motor and big cylinder head. APE VS1100S-PRO valve springs required. |
875.00 |
|
(W) 70-151 |
.416”/.416” |
244/244 |
Pro stock tyype motor. APE #VS1100S-PRO valve springs required. |
875.00 |
|
(W) 70-421 |
.429”/.429” |
244/244 |
Current state of the art pro stock grind. Must use new GSXR type or extended pad rockers and APE #VS1100S-PRO valve springs |
875.00 |
|
(W) 70-301 |
.430”/389” |
268/258 |
1500cc+ Pro stock / pro comp / pro street type motors. APE #VS1100S-PRO valve springs required. |
875.00 |
|
(W) 70-411 |
.445”/.445” |
250/250 |
Mountain motor pro stock APE #VS1100S-PRO valve springs required. |
875.00 |
